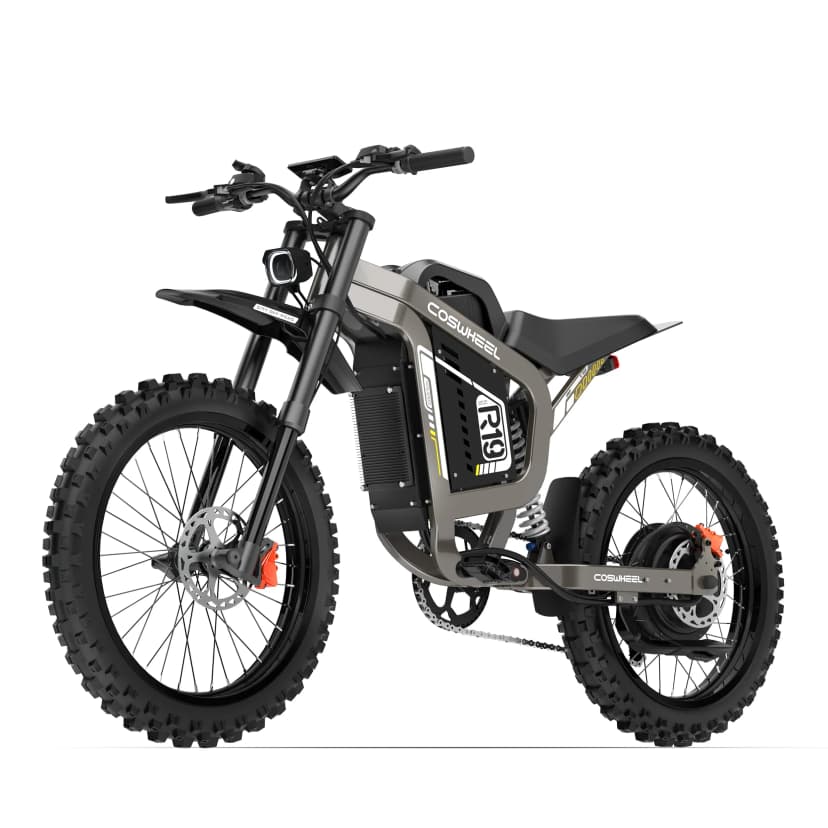

COSWHEEL R19 Electric Dirt Bike

Locate the battery lock key, open the battery lock and lift the battery upward to remove it. To reinstall, align the battery with its rails, slide it down until it clicks and then lock it with the key.

Remove the power supply plug, insert the charger cord and turn on the power. A red light indicates charging and a green light indicates the battery is fully charged.

Use the NFC card that comes with the bike to touch the screen to start the machine. You can also copy that NFC card onto an NFC-enabled mobile phone and use it as the vehicle start key.

Press and hold the M key to shut down or use the NFC card while the vehicle is stationary. The screen will also shut down automatically if the vehicle remains stationary.

Short press the up shift arrow to increase power or the down shift arrow to decrease it. Levels 1–2 are pedal-assist modes where the throttle is inactive; to use throttle mode at level 3, do not pedal and let the bike roll 3–4 meters before twisting the throttle.

Level 0 stops power output, level 1 is the lowest power, level 2 is medium power and level 3 is the highest power output.

On startup the instrument displays total mileage, speed, battery power, headlight status and current gear.

Remove the quick release lever, place the tyre into the fork slot, insert the quick release lever and then tighten the screw cap on its other end to secure the wheel.

The factory configuration is designed for road and light off-road use only. Do not perform jumps or aerial maneuvers unless the bike has been modified with front forks and rear suspension intended for such purposes.

Install the pedal marked “L” on the left side of the chainring and “R” on the right. Tighten each pedal by turning the left pedal counter-clockwise and the right pedal counter-clockwise until secure.
